A three roll grinder is a type of industrial machine used to grind and refine thick pastes, inks, paints, and adhesives. Its primary purpose is to achieve a uniform particle size throughout the product while improving the viscosity and quality of the final product. The function of a three-roll mill is based on the interplay of the three rolls, which apply pressure to the material from different directions.
Three roll grinders can be categorized based on their design, technology, control system, and industry applications.
Based on design and configuration

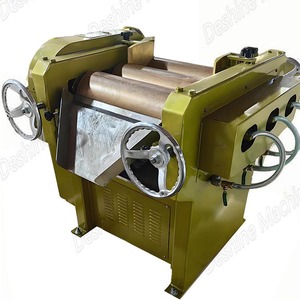

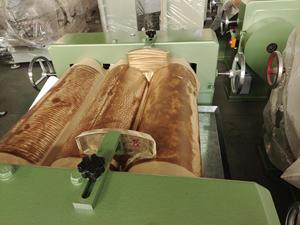

Conventional three roll mills: These have three horizontal rollers arranged parallel to each other, typically housed in a solid metal frame. The feed is usually placed in between the top and center rolls, then squeezed and drawn down by the three rolls.
Based on grinding technology
Wet three roll grinders: Also known as three roll mills, these grinders use liquid to improve the grinding process. Wet grinders are ideal for materials that need to be ground to a fine particle size, usually in an oily or watery suspension.
Dry three roll grinders: Unlike their wet counterparts, dry three roll mills do not use water or any other liquid in the grinding process. This makes them suitable for handling dry materials like powders and pigments.
Based on control system and automation
Mechanical controlled three roll grinders: These mills use mechanical components such as gears, levers, and pulleys to control the gap between the rolls and the direction of the material's flow. Three roll grinders with a mechanical control are traditional and might require more manual work compared to modern rolled grinders with automation features.
Hydraulic controlled three roll grinders: These use hydraulic systems to control the pressure and gap between the three rolls precisely. This allows for better control over the thickness and consistency of the milled material compared to those with mechanical control.
Based on industry application
Paint and ink manufacturing: In these industries, the size reduction of pigment agglomerates is necessary in order to achieve the desired color strength and stability of the final product. The three roll paint grind is mainly used in the creation of paints for industrial, automotive, and architectural applications. In the ink industry, the focus is on color, transparency, and durability, so a three roll ink grinder is used to break down larger pigment clusters to improve the quality of the ink.
Cosmetic and pharmaceutical manufacturing: Cosmetic products like lotions and ointments require a certain degree of homogeneity and smoothness. Some cosmetic products like sunscreens and anti-aging products, for example, contain high SPF and active ingredients/chemical components. These must be broken down, and the end product must be smooth, even, and homogenous. In this instance, a three roll grinder for cosmetics is typically used. On the other hand, pharmaceutical products involve rigorous testing for purity and quality, which is the primary reason a three roll miller is used to ensure only the finest products with the utmost clarity and smoothness are released.
Food processing: In the food industry, a mill is typically used to process ingredients like chocolate, nut pastes (like almond and peanut pastes), and sauces (like sesame oil). These must undergo analysis before being safely and legally released to consumers. A three roll grinder for food is used to ensure the final product is steady and of high quality, with ingredients broken down to the necessary size.
Working width
The working width for three roll mills varies, depending on the machine's overall size and configuration. Most three roll mills have widths from 25mm to 1300mm. A wider width will allow processing for more products simultaneously.
Power
The power rating details for a three roll mill are crucial for understanding what product the mill can handle. Usually, three roll mill power ratings are in kW or horsepower (HP). 3 roll mill machines for paints and inks typically have a power rating of about 7.5-15 kW. Greater power is needed for mills handling more viscous products like adhesives or rubber.
Temperature control
Three roll mills have temperature control units to manage the temperature of the rolls during processing. The roll's temperature can range from -20°C to 300°C. The temperatures clients require depend largely on the material they want to process.
Material
The manufacturing material of the rolls will affect the product's final quality. Usually, the end rolls are made of hardened steel or rubber. However, the core may be made of cast iron or aluminum.
Structure
Three roll mills for inks generally have a horizontal structure. Vertical structures may be used for mills that are over 1,300 mm wide. Aside from horizontal and vertical, another structure is a semi-hollow structure where the milled material goes through cavities in the roll.
Unpainted three roll mills' surfaces can show dirt and grime easily. Operators will have to wipe cleaning solution on the roll surface to clean off the product and achieve a better-quality final product. Besides, if all they do is to clean the product off, they will not do any serious maintenance of the machine.
Since the rolls rotate against each other tightly, some oil or grease will be necessary to keep the parts moving smoothly. Usually, around the bearing of the rolls, grease is added. A small grease pump connected to the machine may be used to inject grease continuously.
Furthermore, regular feeding tool adjustments and cleaning of simple spare parts will improve the three roll mill's performance.
Three roll mills are mostly used in the paint industry. But three roll grinders are still found in various other industries and applications as detailed below.
Cosmetics
The three roll grinding mill is used to process lipstick, foundation, eye cream, cream, and other cosmetic products. The machine's precise temperature control ensures that emulsions and ointments maintain their ideal consistency and stability, enhancing the longevity and reliability of cosmetics.
Chemicals
Three roll grinders are widely used in chemical production, particularly in the manufacture of coatings, inks, adhesives, and polymer compounds. For instance, in the coating industry, the machines refine pigments and additives to achieve optimal dispersion, uniformity, and stability of chemical products.
Food
In the food industry, the three roll grinder machine is used to process products like chocolate, soy milk, almond milk, coffee, and fruit jam. The device's gentle grinding and homogenization improve emulsification, stability, and texture in food products, contributing to an excellent mouthfeel and overall quality.
Pharmaceuticals
Three roll grinders play a critical role in the three-roll grinder pill production and other pharmaceutical processes. They are utilized to mill and homogenize suspension, ointments, emulsions, and cream formulations. By ensuring uniformity and optimal particle size, these grinders enhance the formulation's effectiveness, stability, and bioavailability.
Lubricants
Three-roll grinders are used to refine and disperse essential additives and compounds in lubricants and oil products. The machines improve the product's durability, stability, and resistance to oxidation by ensuring even blending and dispersion.
Rubber
A three roll rubber mill grinder helps refine and disperse various additives in rubber compounds. These include fillers, pigments, and processing aids. By ensuring even blending and dispersion, the machines improve the rubber compound's strength, durability, and aging resistance.
Nanotechnology
In the field of nanotechnology, the three-roll grinder is vital in dispersing and preserving nanoparticles and nanomaterials. The precision of the machine and its ability to exert shearing forces enable the safe incorporation of nanomaterials into various matrices, hence expanding the frontier of nanotechnology applications.
When buying a three roll mill grinder machine, buyers should consider several features to help them match the ideal machine for their needs.
Material of the rolls
The rolls of three roll grinders are manufactured from different materials. Common roll materials include cast iron rolls, steel rolls, and ceramic rolls. Alloy steel rolls are more durable than cast iron rolls because they are not easily corroded or worn down. For this reason, they can be used for a wider range of applications. Some metal rolls are also covered with a soft rubber inner layer to enhance their durability. Rubber not only prolongs the life of the rolls but also improves quality by imparting flexibility to the product being milled. The ceramic roller, on the other hand, is more brittle and is more prone to break or chip. Such rollers can only be used for specific applications, like milling materials with high wear qualities.
Gear or belt driven
Three roll grinders are either gear or belt-driven. Gear-driven three rollers are generally more expensive than belt-driven ones. They also offer better performance, higher efficiency, and a wider milling capacity. Gear-driven three-roll grinders are suitable for heavy industrial applications. On the other hand, belt-driven grinders have many uses because they are affordable and often meet standard milling needs.
Grinder safety features
Many manufacturers and suppliers are now concerned about worker safety. Three roll grinders, especially older models, do not have many safety features. Buyers should look for machines with emergency stop buttons, guards, and covers to protect workers from moving parts. Safety features like these enhance workplace safety.
Powder and granules feeding method
Some grinders take in powder and granules from the top, while others take the materials from the side. Top-fed grinders are easier and safer to operate. Many manufacturers also use auto-feeding systems to make milling easier and production lines smoother.
Q1: What are the latest innovations in three roll grinders?
A1: The three roll grinder industry has recently seen several developments, which improve efficiency, quality, and ease of use. Apart from those, there are other developments modifying the way three roll grinders work. For instance, the use of IoT and AI gives automatic controls and predictive analytics capabilities. Other developments include energy-saving motors, cleaning and maintenance systems, safety enhancements, faster product changeover, and remote diagnostics and troubleshooting.
Q2: Can a three-roll mill handle a wide range of viscosities?
A2: Three-roll mills excel at processing low-viscosity materials. Their lateral compression forces can adequately break down and disperse high-viscosity materials. Nonetheless, extremely high-viscosity materials may pose limitations to the three-roll mill's processing capabilities.
Q3: Are all three-roll mills made of the same material?
A3: No. The mills used for the food industry are generally made of stainless steel. Three-roll mills used for inks, paints, and other chemicals usually use hardened steel.
