Spline grinder

Types of spline grinders

A spline grinder is a mechanical device that sharpens the teeth of a spline tool. There are many different kinds of spline tools, so there are also different kinds of spline grinders. Below are some of the most common spline grinders.

• Cylindrical grinder

  This grinder has a cylindrical grinding wheel that rotates around the workpiece to give it a cylindrical shape. The wheel can be adjusted to fit different sizes and shapes of splines. It is suitable for grinding large or complex splines.

• Profiled wheel spline grinder

  This grinder uses a profiled grinding wheel with a specific tooth shape that matches the spline teeth. It can produce precise and consistent spline teeth in one step. It is fast and efficient for making many identical splines.

• Generating grinder

  This grinder uses a generating motion to cut the spline teeth. The workpiece and the tool rotate together at the same speed in opposite directions. The tool is set in a fixed position relative to the workpiece. It is a simple and versatile method for grinding different kinds of splines.

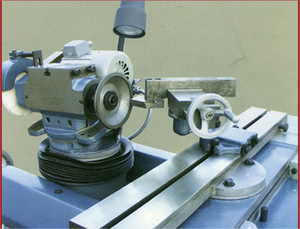

• Tool and cutter grinder

  This grinder is designed to sharpen various tools and cutters, including splines. It has multiple attachments and adjustable features that allow it to grind different parts of the spline tool. It is a flexible and economical option for grinding a few splines.

• Roller grinder

  This grinder uses a set of rotating rollers to crush the workpiece against a fixed grinding surface. The rollers can be adjusted to control the pressure and distance between them. It is suitable for grinding hard or brittle spline tools.

Design of spline grinders

• Work Spindle:

  The work spindle is an important part of the spline grinder machine. It is connected to the motor and rotates at high speed. The work spindle holds the piece being worked on. It can be adjusted to fit different sizes and shapes of things.

• Machine Base:

  The machine base is the foundation of the spline grinding machine. It keeps everything steady and balanced. A strong base reduces vibrations and movement while the machine is running. It ensures safety and accuracy during work.

• Control Panel:

  The control panel lets users operate the spline grinder. It has buttons, switches, and displays for controlling the machine. Users can adjust the speed, direction, and other settings through the control panel. A good control panel makes the machine easy to use and safe.

• Cooling System:

  A cooling system prevents the spline grinder from overheating. Grinding generates a lot of heat. The cooling system circulates coolant or water through the machine to cool it down. It protects the machine from damage due to excess heat. A reliable cooling system extends the machine's life.

• Safety Guards:

  Safety guards protect users from splines grinding machines. Guards cover moving parts to prevent accidents. They also help keep dust and debris inside the machine. Good safety guards are necessary for a safe working environment.

Usage scenarios of spline grinder

Spline grinding machines are used in many industries. They make and maintain parts with splines. These parts are used to join shafts and gears. Spline grinding is important for industries that need precise and strong connections. Some key areas where spline grinding is important include:

• Automotive industry spline grinders are used to make and repair parts for cars and trucks. They grind the splines on parts like drive shafts, axles, and transmission gears. These parts need to fit together correctly to work well and be safe.
• The aerospace industry needs spline grinding for aircraft engines and flight control systems. The splines must be ground precisely to handle the high speeds and pressures in the sky. The aircraft spline grinder makes parts like turbine shafts and landing gear components.
• In the energy sector, spline grinders are used for wind turbines, oil drilling equipment, and power plants. They grind splines on large rotating machines that need a strong fit to avoid failure.
• Medical devices also rely on spline grinding. It is for dental drills, robotic surgery tools, and imaging equipment. These devices need smooth and accurate motion to keep patients safe and get good results. The medical spline grinder is used to make parts like jointed surgical instruments and implantable devices.
• Robotics and automation systems use spline grinding to make joints in robotic arms, conveyors, and assembly lines. The splines must be ground well to allow fast and smooth movement in robots. The robots spline grinder is used to make parts like gearboxes and end effector tools.
• Railway systems also need spline grinding for locomotive drive trains and signaling systems. The grinder makes parts that can take heavy loads and run for a long time.
• Marine equipment such as ships, submarines, and offshore platforms also use splines that need grinding. The splines on shafts and propellers are ground for a good fit and smooth operation in water.

How to choose a spline grinder

When choosing a spline grinder, many factors must be considered. These factors ensure that the machine is suitable for the user's needs. First, users must determine the machine's purpose. It is essential to consider what kinds of splines will be ground. Users should consider the size and number of splines. The grinder must be powerful enough to handle the required tasks. The machine's capacity should match the size of the splines being worked on. The machine should also have the necessary accuracy and repeatability. It will ensure that each spline is ground to the desired specifications.

Flexible adjustment and changeover features are necessary for industries with many different spline sizes or designs. Users must look for a grinder that is simple to operate. Look for features like user-friendly controls, easy setup, and maintenance requirements. Ensure that the grinder complies with safety standards and has necessary safety features like emergency stops, guards, and proper ventilation. Think about the budget constraints. Determine the total cost of ownership, including initial investment, maintenance costs, and energy consumption. Choose a grinder from a supplier with a good reputation. It should have reliable customer support and a track record of performance and reliability.

Q&A

Q1: What is a spline grinder used for?

A1: A spline grinder is a machine tool used to grind and shape the splines on a workpiece.

Q2: What can a spline grinder process?

A2: Spline grinders can work on various materials, including metals, plastics, and composites.

Q3: What are the types of spline grinders based on the mechanism?

A3: They can be classified into shaft, horizontal, and vertical spline grinders.

Q4: What are the advantages of using CNC spline grinders?

A4: These include increased productivity, improved accuracy, and reduced labor costs.

Q5: What is the purpose of the coolant in a spline grinder?

A5: The coolant reduces the heat generated during grinding and helps lubricate the grinding wheel and workpiece.
