Serpentine helical is a type of heat exchanger that comes in different types depending on the fluids used in the device and its working principles. Here are some common ones:
Double-tube heat exchangers
In a double-tube type, the first fluid flows through the inner tube, and then the outer tube flows with the second fluid. This is a simple kind of heat exchanger that is easy to maintain. It is, however, less efficient than other types and only used in low-heat applications.
Plate heat exchangers
In this type, the two fluids flow through alternate plates and are separated by a thin plate. A plate heat exchanger is compact and efficient, making it easier to use in refrigeration systems. The plates can be removed for cleaning; this type is widely used in food and beverage applications.
Shell and tube heat exchangers
This is a common type of heat exchanger consisting of a shell and a tube. One fluid runs through the tube, while the other runs through the shell. This is a robust, versatile device that is good at handling high-pressure conditions. Because of this, it is used in the chemical processing industry.
Air-cooled heat exchangers
In this type, air is used as the cooling medium instead of a liquid. Fins are added to increase surface area for more efficient heat transfer. It is often deployed where water is scarce, and less is needed for the exchange. Commonly used in oil refineries and power generation.
Spiral heat exchangers
This consists of two concentric spiral channels where one fluid flows through one channel and the other fluid through the other. This is compact and handles viscous fluids well. Used commonly in wastewater treatment and the chemical process.
Serpentins are devices that transfer heat from one place to another. They work by circulating a fluid through the device, absorbing or releasing heat as required.
The main purpose of a serpentine heat exchanger is to transfer heat. It absorbs heat from a hot fluid and releases it to a cooler fluid. The fluids can be liquids or gases that flow through the exchanger.
The fluids flow through different channels or paths within the exchanger. As they circulate, the hot fluid transfers its heat to the cooler fluid through the walls that separate them. This is because of the temperature difference between the two fluids.
Heat absorption occurs in the hot fluid as it passes through the exchanger. The fluid then rises in temperature as it releases heat to the cooler fluid. On the other hand, the cooler fluid absorbs the heat, increasing its temperature.
Heat exchangers are applied in different industries and processes, from power generation to space heating. Here are some common usage scenarios:
HVAC systems
In heating, ventilation, and air conditioning systems, they are used to transfer heat between air and refrigerants or water. This helps cool or heat indoor air.
Industrial processes
Used to cool or heat liquids gases in manufacturing chemical processes. In such scenarios, they help recover energy from waste fluids.
Power generation
Used to recapture waste heat from exhaust gases to increase efficiency in power plants. In this case, they may transfer heat from steam to water in a secondary system.
Food processing
Used to pasteurize milk or other liquids by heating them to kill bacteria. This is done while minimizing heat transfer to the food. Also used in cooling, concentration, and drying processes.
Aerospace
In aircraft, they cool critical components by transferring heat from oils or other fluids to air or water. This helps keep engines and other parts at operationally safe temperatures.
Heat exchangers are designed to be extremely durable. However, this largely depends on the materials they are constructed from, the operating conditions, and the maintenance done on them. Here are some common factors contributing to their durability:
Material selection
Manufacturers choose stainless steel, brass, or titanium for their corrosion resistant qualities. This helps ensure the exchangers can withstand harsh chemicals and environments.
Robust construction
They are often constructed with thick walls, especially in high-pressure applications. This prevents the device from deforming or failing when exposed to extreme operating conditions.
Fouling resistance
Many are designed with features such as turbulence-inducing structures. These minimize fouling, or the build-up of deposits that can reduce heat transfer efficiency over time.
Vibration resistance
They are constructed to resist vibrations. This is particularly important in industrial settings where machinery may cause the exchanger to shake or vibrate.
Here are some common ways to maintain the heat exchangers:
Chemical cleaning
In this maintenance, chemicals are used to dissolve deposits from the surfaces inside the serpentine coils. This is ideal when there is heavy fouling that cannot be removed by simpler methods.
Mechanical cleaning
This involves using brushes, scrapers, or high-pressure water jets to physically remove deposits from the exchanger surfaces. This is a direct and effective way of removing fouling.
Acid cleaning
Acid cleaning is a powerful method that involves immersing the heat exchanger in an acid solution. This is most commonly applied when the exchanger has severe deposits that cannot be removed by other methods.
Backwashing
Backwashing reverses the flow of cleaning solution or water through the heat exchanger. It is designed to remove fouling from serpentine pipes and is commonly used in tubular exchangers.
Choosing the serpentine coil type requires one to consider several factors. Here are some of them:
Operating conditions
Consider the fluids' temperatures, pressures, and flow rates in the system. Also, consider the fluids' corrosiveness to determine the right materials for the exchanger. This will help ensure it can withstand the harshness of the operating environment.
Heat transfer requirements
Determine how much heat needs to be transferred. This will provide information on how to calculate the right size for the serpentine coil. Assess the fluid flow rates to ensure optimal performance. These two factors ensure the coils meet the heat transfer needs.
Space and accessibility
Consider the available space and accessibility for the coils. If limited, go for compact coils, but ensure they meet performance requirements. Also ensure there is reasonable access for maintenance, repair, and installation.
Maintenance and durability
Consider how often the coils will be maintained and the expected lifespan. Go for durable coils that demand low maintenance. Such coils increase operational efficiency and reliability while decreasing downtime.
Cost
Determine the initial and long-term operational costs. Select cost-effective coils that meet the project requirements. Sometimes, the cost may boil down to materials and complexity of construction.

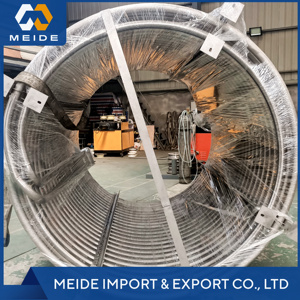

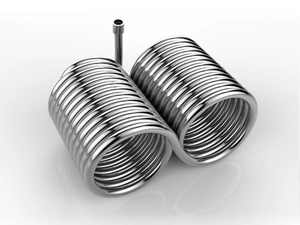

A. A serpentine coil is a type of heat exchanger that consists of a long, continuous pipe or tube that is twisted into a coil shape. This makes it resemble the path of a snake, thus the name “serpentine.” It is often deployed in applications where efficient heat transfer is required. Commonly, it is applied in cooling systems, chemical processes, and HVAC systems.
These coils have several advantages. For one, their coil design enables them to provide a large surface area for heat transfer. This improves heat exchange efficiency. The coils are also highly versatile, meaning they can be used in various applications. Easy to install, they are also well suited for compact spaces, thanks to their coiling.
A. They are designed to transfer heat between two fluids, one of which is usually a heat source while the other is a heat sink. It does this by allowing the two fluids to flow in a counter-current or cross-flow arrangement. This means as the hot fluid moves through the coil, it releases its heat to the cooler fluid flowing in the opposite direction. There are several types of serpentine heat exchangers, each different in design.
A. Serpentine heat exchangers find applications across a variety of industries. Commonly, they are used in chemical processing, mineral processing, and the oil and gas industry. These industries use them because they are suited to handle corrosive fluids and extreme temperatures. The food and beverage industry also uses them, especially for pasteurization and sterilization.
When picking a serpentine heat exchanger, there are several factors to consider. These include the fluids’ temperatures, pressures, and flow rates. One must also consider the fluids’ corrosiveness to determine the right materials. Another important factor is the required heat transfer. Assessing these factors ensures that the chosen coils have durability and efficiency.
