Range of sensors

Types of range of sensors

Range sensors are used to measure the distance of an object within the available environment. They achieve this by emitting a signal that reflects off the target and returns to the sensor. The sensor then analyzes the signal to determine the distance to the object. The emitted signals can be in the form of light or sound.

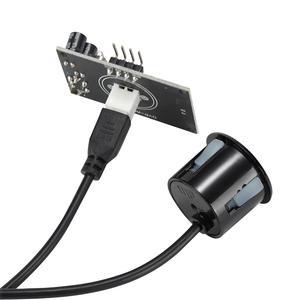

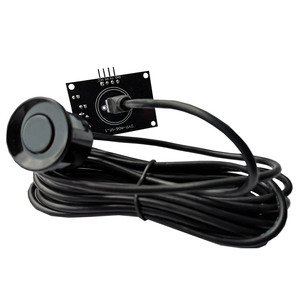

• Ultrasonic sensors: These sensors utilize sound waves to gauge distance. They emit ultrasonic pulses, which travel through the air and reflect off nearby objects. By analyzing the time delay of the returned echoes, these sensors can accurately determine the distance to the target. Ultrasonic sensors are widely used in applications such as parking assistance, object detection, and level measurement in liquids.
• Lidar sensors: LiDAR sensors are advanced optical range sensors that leverage laser pulses to achieve high-precision distance measurements. They emit rapid laser pulses and measure the time it takes for the pulses to return after reflecting off objects. By analyzing the reflected laser signals, Lidar sensors can create detailed 3D maps and measure distances with exceptional accuracy. Due to their precision and ability to capture intricate details, Lidar sensors find applications in autonomous vehicles, robotics, and topographic surveying.
• Optical rangefinders: Optical rangefinders are classic devices that utilize visual observation to estimate distance. They involve two aligned telescopes and a calibrated scale. When the target is sighted, the user adjusts the scale until the images in the telescopes coincide. The distance can be determined based on the scale's reading, which corresponds to the degree of parallax. Optical rangefinders were historically significant in military applications and are still utilized in specialized contexts where electronic devices may not be feasible.
• Radar sensors: Radar sensors utilize electromagnetic waves to measure distance and velocity. They emit radio waves and analyze the reflected signals from nearby objects. By examining the Doppler shift in the returned signals, radar sensors can determine the speed of moving targets. Radar sensors are widely used in applications such as aviation, weather monitoring, and traffic management, where distance and velocity information is crucial.
• Time of flight sensors: Time-of-flight (ToF) sensors are an advanced technology used in various applications, including smartphones, cameras, and depth sensing. These sensors emit light pulses, such as infrared, and measure the time it takes for the emitted light to travel to an object and back. By analyzing the time delay of the reflected light, ToF sensors can calculate distance with high precision. Their ability to capture depth information enables features like autofocus, gesture recognition, and 3D mapping.

Specification and maintenance of a range of sensors

There are many different kinds of vehicle sensors, each with its own specifications. Here are a few examples:

• Mass airflow sensor:

  MAF sensors measure the amount of air flowing into the engine to determine how much fuel to inject. They help optimize fuel efficiency and emissions control. There are two main types of mass airflow sensors: wire and film. Wire sensors use a heated wire to detect airflow changes, while film sensors have a thin heating element on a substrate that senses airflow variations. A MAF sensor has a sensing element that heats up and stays at a constant temperature. The sensor measures the amount of energy required to maintain that temperature. This method detects the amount of air passing over the sensing element.

• Oxygen sensor:

  O2 sensors analyze the exhaust gases to assess how well the combustion process works. They help maintain the desired air-fuel ratio, improving fuel efficiency and reducing emissions. O2 sensors can be zirconia or titania-based. Zirconia sensors generate a voltage signal proportional to the difference in oxygen content between the exhaust and ambient air. They are the most common type. Titania sensors change their electrical resistance based on the oxygen levels in the exhaust. They require a reference current to operate.

• Oil pressure sensor:

  Oil pressure sensors monitor the oil pressure level in the engine. They ensure that oil circulates properly to lubricate engine parts. Low oil pressure can cause engine damage. These sensors use a strain gauge, piezoelectric crystal, or capacitive element to detect pressure changes. Strain gauges convert mechanical stress into an electrical signal. Piezoelectric crystals generate an electric signal proportional to the pressure change. Capacitive elements measure variations in oil pressure based on changes in capacitance between the sensor plates.

• Coolant temperature sensor:

  Coolant temperature sensors measure the temperature of the engine coolant. They help the engine control unit (ECU) manage the engine's temperature by indicating how hot or cold it is. The sensors use thermistors, which are resistors whose resistance changes with temperature. NTC (Negative Temperature Coefficient) thermistors have higher resistance at low temperatures and lower resistance at high temperatures. Conversely, PTC (Positive Temperature Coefficient) thermistors have higher resistance at high temperatures and lower resistance at high temperatures.

  Sensor maintenance is critical to ensure accurate and reliable data transmission to the engine control unit (ECU) for optimal engine performance. Here are some general guidelines for maintaining sensors:

  Inspecting the wiring harnesses and connectors for damage, corrosion, or loose connections is essential. Damaged wiring can lead to faulty readings or sensor failure. Make sure that all the electrical connections to the sensors are secure to prevent signal interruptions and ensure proper operation.

  Follow the recommended maintenance schedules outlined in the vehicle's owner's manual. This includes regular inspections and replacements of worn-out sensors. Using clean fuel and oil can help prolong the life of fuel and oil sensors. Avoid driving on contaminated roads where dust and debris can clog the air intake sensors. Additionally, keeping the vehicle's air filter clean can prevent excess dirt from entering the air intake system.

  Overheating can damage engine sensors. Therefore, monitoring the vehicle's temperature gauge and avoiding overloading the vehicle is essential. If the temperature gauge shows the engine is too hot, stop driving and let it cool before continuing. Be gentle when handling sensors, especially delicate ones like MAF and O2 sensors. Using excessive force can break them and cause sensor failure.

How to choose a range of sensors

Choosing the right sensor is very crucial for businesses. It will ensure they meet their operational requirements and offer reliability. Here are some of the factors to consider when choosing a sensor range:

• Sensing Element

  The sensing element is the heart of a sensor. It detects the measured variable and converts it into a usable signal. When choosing a sensing element, consider the following:

  1. What is the physical quantity to be measured? (Temperature, pressure, light, etc.)

  2. What is the property of the element that changes in response to the measured variable? (Electrical resistance, capacitance, voltage, etc.)

• Transducer

  A transducer converts the change in the sensing element into a signal that can be processed or displayed. When selecting a transducer, consider the following:

  1. What type of signal is needed for the application? (Analog voltage, analog current, digital signal, etc.)

  2. What is the type of transducer that can convert the change into the required signal? (Operational amplifier, signal conditioning circuit, etc.)

• Signal Processor

  The signal processor amplifies, filters, and processes the signal from the transducer to make it usable. Consider the following when selecting a signal processor:

  1. Is amplification necessary for the application?

  2. Should the processor filter out noise or unwanted signals?

  3. Is there a need for additional processing, such as conversion or signal scaling?

• Output Interface

  Consider the interface when selecting a sensor with an output. The interface allows communication between the sensor and other systems. It should be compatible with the following:

  1. What type of connection is needed? (Wired, wireless, etc.)

  2. What type of interface is required? (Serial communication, analog, etc.)

How to DIY and replace

Any car owner looking to install a new sensor or replace a faulty one can do it with ease. The process is quite simple and straightforward. Firstly, it is important to know that a car has a range of sensors, meaning they all serve different purposes. It is important to identify which one is faulty and needs replacement. After doing that, follow the steps below:

1. Identify which sensor needs replacement. Whether it is the oil pressure sensor, crankshaft position sensor, cabin air sensor, or any other.

2. Read the manufacturer's instructions and guidelines to know how to install it and how to remove the old one.

3. Get the right tools that will be needed for the job. This might include a wrench set, ratchet, and socket, a screw jack, screwdriver, lift, and others.

4. Once the right tools have been gathered, open the hood and locate the sensor. For instance, to replace the engine coolant temperature sensor, one must look for the sensor on the engine block near the air cleaner.

5. After locating the sensor, remove the connector wires using a wrench or screwdriver, depending on the sensor.

6. Pull out the old sensor and replace it with the new one. Make sure it fits into the exact position where the old one was.

7. Once the new sensor is in place, reconnect the electrical wires or connector. Ensure it is well connected so the sensor can work properly.

8. Double-check to make sure everything is in place and the way it should be.

9. Start the vehicle to see if the sensor is working fine.

Note: Always take caution when replacing sensors that interact with the vehicle's fluids or high voltage components (like the ignition system). If unsure, it's always best to consult or hire a professional mechanic.

Q and A

Q1: What are the factors to consider when buying a range of sensors?

A1: Consider the sensor's accuracy, response time, and whether it needs calibration. Think about where and how the sensor will be used, its environmental conditions, and what materials will be involved. Also, look at communication methods, compatibility with other systems, and software for data analysis and presentation.

Q2: Do sensors need to be calibrated?

A2: Yes, some sensors require calibration to maintain accuracy, especially those used in precise measurements or specialized applications. Follow the manufacturer's guidelines for calibration procedures and intervals.

Q3: What is the difference between a sensor and an actuator?

A3: A sensor detects changes in the environment and provides data on those changes, while an actuator receives commands based on sensor data and performs actions, such as moving, opening, or closing something. In short, a sensor measures, and an actuator acts.

Q4: Can multiple sensors be used to measure the same variable?

A4: Yes, using multiple sensors to measure the same variable is possible and can provide redundancy, improve accuracy through data fusion, and allow measurement over different ranges or conditions. Ensure proper calibration and compatibility between sensors.
