Floatless level sensors come in different types. Below are some of them:

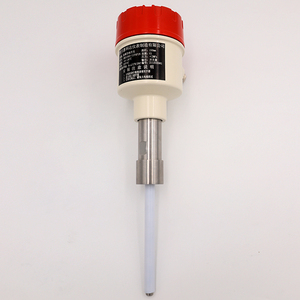

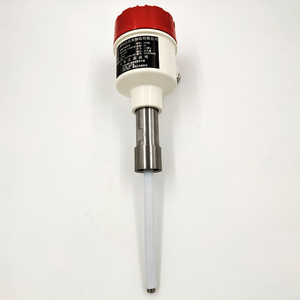

Capacitive Level Sensors
A capacitive level sensor detects liquid levels by measuring changes in capacitance. These sensors consist of two conductive plates separated by a dielectric medium. Once the target liquid enters the space between the plates, it alters the capacitance by acting as the dielectric substance. This change causes the capacitance value to fluctuate from the normal range. The fluctuations are then interpreted by the sensor, which transmits an electrical signal. The benefit of capacitive sensors is that they can monitor a wide variety of liquids and granules. They function well even with non-contact applications. Conversely, they may struggle with coatings, causing unnecessary installations and maintenance issues.
Ultrasonic Level Sensors
Ultrasonic level sensors measure liquid levels via sound wave pulses. The sensor emits ultrasonic waves that travel through the atmosphere, hit the liquid surface, bounce back, and then be received by the same sensor. The time taken for the sound wave to return indicates the distance level. A large benefit of ultrasonic sensors is that they work well with most liquid surfaces. They are also relatively easy to install and non-invasive because they do not require physical contact with the liquid. However, their level of accuracy is greatly affected by changing temperatures and atmospheric pressure.
Tunable Laser Level Sensors
Tunable laser level sensors consist of a laser source that measures distances by adjusting laser wavelengths to make a measurement. It achieves this by utilizing a tunable laser within the near-infrared region. NIR helps liquid in a reservoir absorb the reflected light. The intensity of the light measured within the liquid reservoir provides information on the liquid level. One key benefit of this level measurement is that it is extremely accurate. Lasers have the capacity to achieve millimeter-level accuracy. In addition, tunable lasers are highly sensitive to liquid levels and work with a variety of liquids including opaque and transparent ones. However, these sensors can be expensive and require complex technology to make them work.
RFID Tag Level Measuring Device
This is another floatless level measurement device used to quantify the level of various materials. The device features a passive RFID tag that is attached to a level measuring element. It then releases an electromagnetic field. The field generates energy within the tag, causing it to send some information back. It measures the distance between the tag and the reader, therefore providing accurate information on the level. RFID tag level measuring devices are useful because of their accuracy. They are also versatile, suitable for solids, liquids, and bulk inventories. However, the effectiveness of the tag is sometimes compromised by changing environmental conditions.
Floatless level sensors are used in various applications. Some of the industries include:
Chemical Industry
Sensors are used to monitor levels of corrosive substances in storage tanks, ensuring safety and preventing overflow. Chemical manufacturing often involves liquids with varying densities and temperatures. Chemical manufacturers use sensors because of their ability to work under the adverse conditions float sensors cannot work.
Water and Wastewater Treatment
In water treatment plants, floatless level sensors monitor water levels in reservoirs, helping the automated processes of filling and draining. Sensors used in wastewater facilities detect levels in digestion and equalization tanks, preventing overflows. In these facilities, accurate level measurements are vital to control the treatment processes and protect against dangerous conditions like overflow or underflow.
Food and Beverage Industry
Level sensors help monitor critical fluid levels like milk, juices, and beer to ensure quality control and avoid contamination. Beverage manufacturers rely on sensors to measure inventory levels in large tanks and silos. In these applications, high levels of cleanliness are required. That is why sensors are preferred due to their non-contact capabilities.
Oil and Gas Industry
In the oil and gas sector, level sensors work in extreme conditions like high pressures and temperatures. The sensors help measure the level of crude oil, natural gas, and other extracted liquids and solids. In these industries, sensors can detect not only liquid levels but also solids like drill cuttings.
Pharmaceutical Industry
Pharmaceutical manufacturers depend on level sensors to maintain proper levels of drug precursors and finished products in tanks. In this industry, precise measurement is very important to maintain quality and comply with regulations. That is why pharmaceutical industries prefer non-contact sensors, as they can help ensure the sensors do not contaminate any pharmaceutical products.
Mining Industry
Level sensors in the mining industry measure levels of slurry, tailings, and other mined materials. These sensors operate under tough conditions, providing reliable measurements in unpredictable environments. In this industry, accurate level detection can improve safety while increasing efficiency in the mineral extraction processes.
Measuring Range
Floatless level sensors come with varying measuring ranges depending on application needs. For instance, ultrasonic sensors can measure levels from a few centimeters to several meters. Capacitive sensors, however, have smaller measuring ranges.
Resolution
Resolution is the smallest change in level that can be detected by the sensor. It affects the accuracy of measurements in applications where small changes in level must be monitored. For example, a high-resolution sensor will detect minute changes in liquid levels, making it ideal for processes where precision is crucial.
Output Signal Type
Many modern floatless level sensors employ advanced output signals for easy integration with process control systems. For instance, good-quality capacitive sensors feature digital output signals. These sensors simplify level detection by providing discrete on/off signals based on threshold levels. Conversely, ultrasonic sensors typically have analog output signals. Analog output gives continuous level information that is used to create real-time visualizations of the level within tanks or containers.
Power Supply
Level sensors are powered by diverse power supplies depending on application requirements. Most sensors use standard power supplies ranging from 10 to 30 volts. This allows the sensors to be used in many industrial settings. Some sensors are powered by batteries, making them suitable for remote locations where there are no power supply systems.
Housing Material
The housing material of floatless level sensors is selected based on the environment in which the sensor will be used. Exposure to harsh chemicals, high temperatures, or outdoor elements requires a tough and resistant housing. IP65 rating housings are used to protect against dust and water ingress.
Mounting Location Selection
The mounting location of floatless level sensors is selected based on the application's needs. Consider such factors as accessibility for maintenance, proximity to relevant equipment, and space availability. Also ensure the location provides a clear, unobstructed path for any non-contact sensing methods. Avoid placing the sensor near agitation zones, as this can cause inaccurate readings.
Tank or Container Preparation
Ensure the tank or container from which the sensor will derive data is prepared properly. This involves cleaning the tank to remove any debris and ensuring the environment is suitable for the sensor—be it chemically or physically. The aim here is to ensure the sensor functions properly while providing accurate and reliable readings.
Sensors Mounting
Follow the manufacturer's guidelines to mount the sensor in the recommended position. Whether the sensor will be mounted on the top or side of the container, ensure it is mounted securely and at the right angle. The level measurement may be affected by tilting the sensor during installation. If the sensor is non-contact, ensure it is positioned to have a clear line of sight to the measurement area.
Wiring and Connectivity
Once the sensor is mounted, the next step is to connect it to the necessary power and control systems. Make sure the power supply matches the sensor's requirements and that the wiring follows proper industrial standards. When it comes to float-based sensors, pay attention to all details to avoid compromising the functionality of the sensors.
Calibration and Testing
The last step of installation is calibration. Calibration ensures the sensor provides accurate level readings. Most standards require the sensor to be calibrated to known level points. After calibration, perform tests to verify the sensor's performance. Check if the readings correspond to expected levels and whether the sensor integrates seamlessly with control systems.
Regular Inspections
Manufacturers should develop a regular inspection routine for their floatless level sensors. Inspections will help detect any potential issues before they develop into major problems. During inspections, check the sensor housing for signs of wear, damage, or accumulation of debris. Pay close attention to the sensing area if the sensor relies on a clear line of sight for measurement. Also, verify that the sensor's output corresponds with expected values, as this indicates accurate functionality.
Calibration Checks
Calibration is pivotal in guaranteeing floatless level sensors provide accurate readings. Schedule periodic calibration based on the manufacturer's recommendations and the operational requirements. Knowing how often the sensors should be calibrated will also help maintain any warranties on the equipment. Perform calibration at known level points in the container or tank to verify the sensor's precision. After making any adjustments to the sensor, one must always test the device to confirm it works as intended.
Software and Firmware Updates
Many of today’s floatless level sensors come with advanced digital capabilities. For such sensors, always ensure the firmware is up-to-date to maintain top performance. Manufacturers should develop procedures to monitor sensor output and performance remotely where possible. Doing this will help identify anomalies that require immediate attention.
Environmental Monitoring
Manufacturers need to monitor the environment in which their floatless level sensors are used. Temperature extremes, humidity, and exposure to harsh chemicals can impact both sensor performance and lifespan. Assessing these environmental conditions will enable proactive measures to protect the sensor. It may be necessary to use protective casings or shields to minimize environmental effects on the sensors.
End-of-Life Management
Understanding the typical lifespan of floatless level sensors will help create a good management schedule for the end of their life. Sensors have varying lifespans depending on the industry in which they were used, so manufacturers must estimate this accurately. By utilizing this knowledge, one can prepare for a smoother transition during sensor replacement. Moreover, early detection of aging sensors will help minimize inaccuracies.
Verification of Sensing Principle and Technology
Manufacturers need to verify that the sensors employ the right sensing principles for their applications. For instance, ultrasonic sensors work well in applications that require non-contact measurement; capacitive sensors are great for solids and liquids. The technology used in the sensors affects precision, reliability, and environmental compatibility. Checking that the technology is relevant for the application helps guarantee optimal performance.
Response Time and Sensitivity Tests
Good-quality sensors will have a fast and responsive time. This is especially true for applications that have changing levels rapidly. Quick response affirms that the sensor can detect changes almost instantaneously, which is crucial in such applications. A good level sensor also has high sensitivity, meaning it can pick even minute level changes. High sensitivity is better because it will provide more accurate and finer readings.
Calibration and Accuracy Assessment
Calibration guarantees that the sensor provides precise level readings. A prominent floatless level sensor will come pre-calibrated and still have the capacity to be recalibrated to maintain accuracy. The most accurate way to measure this is to compare an average sensor's readings with a known level. This is known the as accuracy assessment, and it helps ensure the sensor remains within acceptable tolerance ranges.
Environmental Resistance Evaluation
Most floatless level sensors are used in extreme industrial environments. These environments include high or low temperatures, humidity, and exposure to corrosive substances. For that reason, they need to be tested to verify their mechanical integrity. They should also be assessed for the ability to function in these environments. Sensors like RFID and capacitive sensors are notorious for their robustness against harsh chemicals and extreme temperatures.
Long-term Stabilities and Tests
Longevity is an essential quality check for floatless level sensors in industries. These industries include oil and gas and mining, where frequent sensor replacements disrupt operations. Assessing long-term stability determines how well a sensor retains accuracy over long use periods. This also includes performance in changing environmental conditions.
Signal Noise Immunity Checks
Noise is one factor that significantly impacts the performance of level sensors. This is especially true in areas that have heavy machinery. It interferes with the sensor's signal, resulting in inaccurate readings. Sensors like ultrasonic and capacitive come with good noise immunity. It ensures reliable performance even in noisy backgrounds.
A floatless level is an innovative technology that measures the level of liquids, solids, and slurries. It does this without the use of floats. The technology used for measurement includes capacitance, radar, ultrasound, and others.
Floatless level technologies are applied in many fields. These fields include chemicals, food and beverages, water and wastewater treatment, oil and gas, power generation, and mining. They are mainly used in the above industries because of their accuracy and reliability in measuring a wide variety of substances.
Floatless level measurement methods do not rely on float mechanisms. This is why they are referred to as floatless. This means they are more reliable in conditions that would typically hinder float-based methods. Such conditions include high-viscosity liquids, turbulent surfaces, and dense slurries. They also provide precise measurements for challenging substances like bulk solids and liquids with changing densities or dielectric constants.
Most floatless sensors are manufactured to withstand extreme temperatures. These sensors utilize materials and technologies such as radar and ultrasonic waves, allowing them to operate in heat above 600 degrees Fahrenheit.
Floatless level sensors typically last between 5 and 15 years. This varies based on element quality, installation conditions, and the operating environment.
