The shape or outline of the fan blade is the fan impeller design. It determines how the air is moved. Different models work for different jobs. Some move a lot of air slowly, while others push less air but work faster. Here are some common types of the fan impeller:

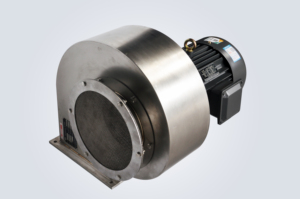

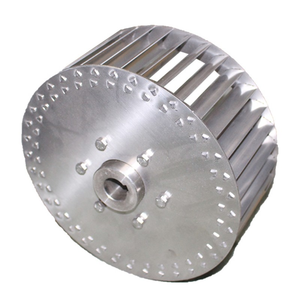

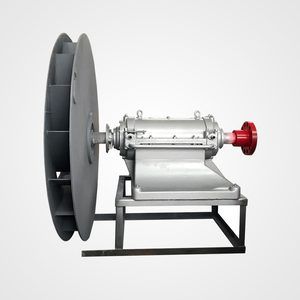

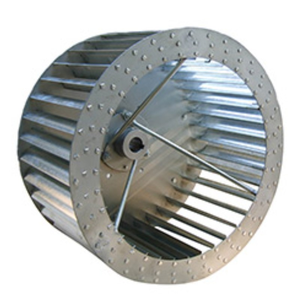

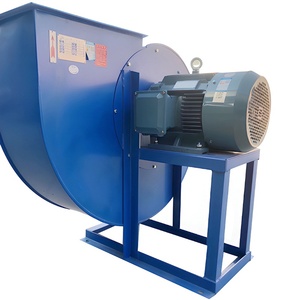

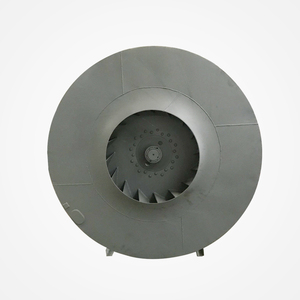

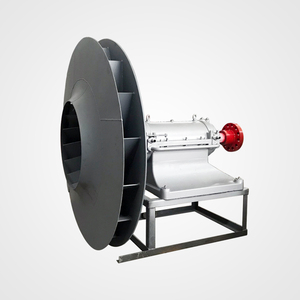

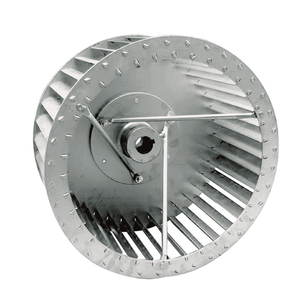

Centrifugal impeller:
The air moves outwards from the center in a circular motion. It increases the pressure and speed by spinning. It is common in ventilation systems, industrial machines, and vehicle engines. They are reliable and sturdy. There are closed, semi-open, and open types that work well for different uses.

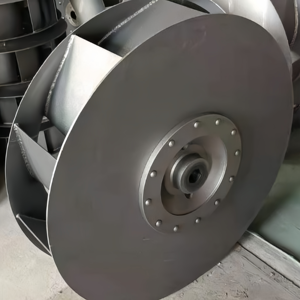

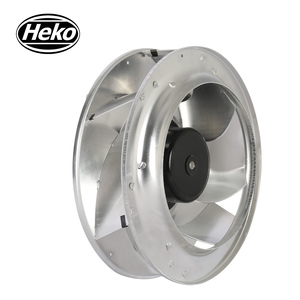

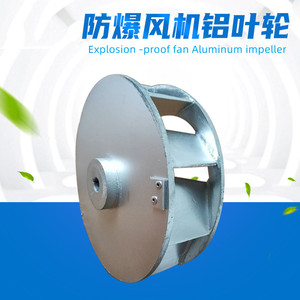

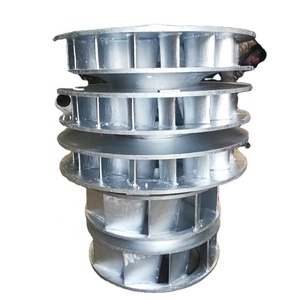

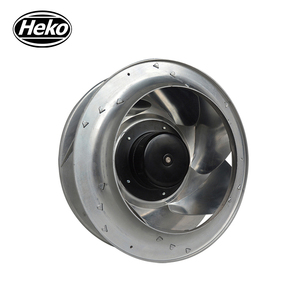

Backward inclined centrifugal impeller:
The curved blades push air back and up. They have less drag from the air. The design is easy to clean. Dirt does not build up as much. The impeller makes less noise when working. Backward-inclined impellers are good choices for heating and air-conditioning machines. They do the job well and save energy.

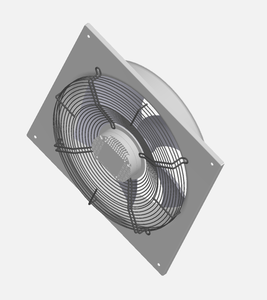

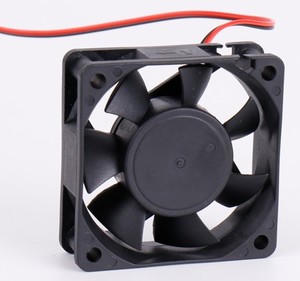

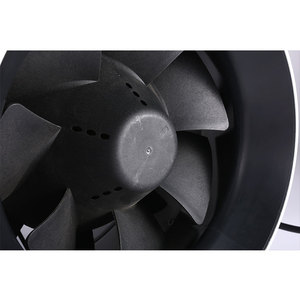

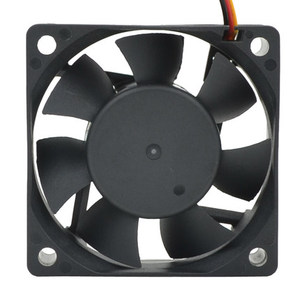

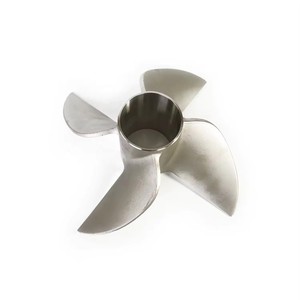

Axial impeller:
The air moves straight through like an arrow. An axial fan impeller has blades that lift and push air forward. More blades mean it can move more air, but there may be more noise. Fewer blades make less sound but push less air. This design is common in cooling fans and small electronic devices.
Mixed flow impeller:
Mixed-flow impellers combine the strength of axial and centrifugal designs. They push air in a straight line and then spin it around in circles. This design leads to high efficiency and optimal performance. It works amazingly well in ventilating air in buildings, piping systems for water treatment, and dust collection working sites.
The fan impeller's design specifications vary with application demands. The material chosen will be able to handle the job, and once manufactured, the impeller will have specific dimensional attributes.
The fan impeller design needs maintenance, and proper care will prolong its life. Cleaning is the primary maintenance activity. People should refrain from using blowers since they push dirt further into the bearings. Instead, cotton rags, brushes, and vacuum cleaners should be used. Cleaning around the base, coil hub, and blade are essential points.
Another crucial maintenance step is lubrication. Fans with grease-filled and sealed bearings need very little attention. A weekly inspection for fan impeller designs with open bearings is necessary. The user can check for signs of wear. Applying a few drops of oil to the exposed shaft is sufficient in this case.
The working environment and scenario requirements of the fan impeller are introduced in the following industries.
Industrial ventilation and dust removal:
The factory ventilation system uses the impeller as a key component to achieve air exchange and ensure good working and living conditions. The fan impeller design ensures adequate air volume and pressure to meet the ventilation demand by changing the impeller's size, speed, and other parameters to adapt to different space and pollution levels.
Carrying and mixing chemical reagents:
In chemical production workshops, fan impellers perform functions of transporting, mixing, and dispersing chemical reagents. Based on the properties and processing requirements of the reagents, the type, shape, and material of the fan impeller can be selected to ensure even mixing and distribution within the space. This helps to facilitate chemical reactions and improves production efficiency.
Cooling of electronic equipment:
In the field of electronic equipment, such as data centers, computer rooms, and electronics manufacturing, impellers are used to cool components and manage airflow. The impeller design needs to be compact and efficient to meet space constraints and the particularity of electronic equipment. Noise control is also an essential consideration to avoid interference with other devices and working environments.
Transportation of powder and particles:
In industries such as food processing and construction, fan impellers transport powder and particles. They select suitable impeller types and speeds according to materials' characteristics and processes to ensure stable conveying, avoid material accumulation and leakage, and comply with relevant sanitary and safety standards. Accordingly, the fan's impeller design will meet the industry's requirements.
Spraying and atomization:
In the fields of agriculture and food processing, fan impellers are used for spraying and atomization. The fan impeller draws liquid from either a pump or container. It then forces the liquid through a small hole at the top of the impeller and into the air, breaking it into small droplets. This method is useful to ensure uniform distribution and effective coverage.
Water purification and treatment:
In sewage treatment and purification, fan impellers introduce air into the water to promote the growth of bacteria and improve oxygen dissolution. The design of the impeller ensures that there is sufficient dispersion and mixing of air and water to enhance the treatment efficiency.
To begin with, buyers need to consider the airflow and pressure requirements of their intended application. Determine the desired airflow (usually measured in cubic feet per minute, or CFM) and static pressure (typically measured in inches of water gauge) of the fan impeller needed for the intended application. Next, they should evaluate the intended fan's application environment. This includes the temperature range, presence of contaminants (such as dust or chemicals), and any requirements for noise level or acoustic performance.
More so, buyers should look for fan impeller designs that are compatible with the intended fan type. For example, a centrifugal impeller may suit a ducted or circular-blade axial fan design. Consider the physical space where the fan must fit (its dimensions). Verify that the selected impeller will physically fit in the available space.
Also, it is essential for buyers to consider the power source for the fan. An AC motor may be suitable for some applications, while a brushless DC motor may be better for others. Choose a fan impeller motor type based on the intended application's power requirements. If the fan will be used in an industrial or hazardous environment, it may require an explosion-proof design to meet safety standards.
Finally, it is crucial to check for any specific regulatory requirements for the intended application. For example, fans used in buildings may need to comply with certain energy efficiency standards, while those used in food processing may need to follow sanitation regulations.
Q1: Which impeller design is mostly used?
A1: Centrifugal fan impellers are the most widely used types in different applications. They work by using the motor-driven axle to increase the speed of the flowing air. The speed then converts the air into a high-pressure and low-volume stream.
Q2: What is the trend in fan design?
A2: The trend in fan design focuses on designing efficient cooling fans. Innovations like the bladeless fan and reverse hub motor are becoming popular. More users are now considering fans with noise-reducing features and optimum airflow.
Q3: What are the advantages of a backward-inclined fan impeller design?
A3: Backward-inclined impellers have vanes that are curved backward to provide good airflow. They are mostly used in industrial settings. Compared to the forward-curved options, they resist airflow reversal. This makes them less likely to tip over during high motor speeds. The backward-inclined fans also tend to have less power consumption and noise levels.
