Cnc roll grinder

Types of CNC Roll Grinders

CNC roll grinders are specialized machines used for grinding, truing, and leveling the surfaces of rolls and drums.

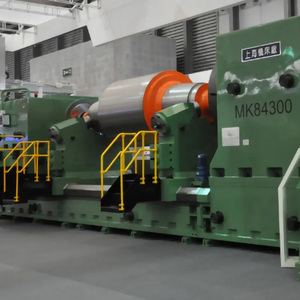

• Conventional CNC Roll Grinders:

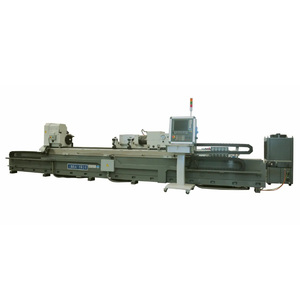

  CNC roll grinders with a conventional design commonly have a horizontal bed where the roll is clamped and positioned. They are usually controlled by a computer numerical control (CNC) system. Users can input specific parameters and configurations into the CNC system to automatically control the grinding process, including roll feeding speeds, grinding depths, and more. This allows the grinders to achieve precision processing of rolls with high reproducibility and automation. Furthermore, the conventional CNC roll grinder is equipped with a variety of grinding wheels and tools that can be replaced to meet the processing needs of different materials and shapes of rolls. The flexible tool changing feature enables manufacturers to adapt to different production scenarios quickly.

• CNC Laser Roll Grinders:

  CNC laser roll grinders use laser beams to heat and change the surface of the roll to be ground, which improves precision and control flexibility. The main operating principle is to direct a high-energy laser beam onto the surface of the roll. The laser heats the surface, causing material ablation or displacement to change the shape and finish of the roll surface. Laser grinders for rolls are typically computer-controlled systems. The CNC function enables precise control of laser parameters and roll positions, thereby controlling the grinding process, depth, and range. Laser grinders are not limited to surface treatment; they can also change roll shapes by controlling the laser's guidance path.

• CNC Multi-Task Roll Grinders:

  The multi-task CNC roll grinder machine combines multiple machining processes into one device. In addition to grinding processes, some may also have functions such as milling, drilling, and tapping. This kind of machine tool usually adopts a numerical control system with a high level of automation, which can realize the integrated processing of multiple procedures, and reduce the need for multiple fixtures and equipment replacement, thus improving production efficiency. Furthermore, the combination of a multi-task CNC roll grinder machine with other functions can also improve the precision and fitting degree of assembly of products.

Specifications and Maintenance of CNC Roll Grinders

Below are some key features of CNC roll grinders and their maintenance needs:

• Capacity

  Such machines can grind rolls of varying weights, diameters, and lengths. Technicians must routinely check the power supply's capacity. They should confirm the voltage and amperage are sufficient to support the weight of the machine without any gradual drop or increase.

• Precision

  The precision of CNC grinders is usually in the tenth or hundredth range. To maintain precision consistently, calibrate the machine after normal use to ensure it's working within the ideal specifications. Further, establish a routine machine repair and maintenance schedule and follow it strictly. This helps the grinder sustain extraordinary precision over time.

• Automation

  The CNC machine automation needs regular software updates. The software driving the automation is like the brain of the roll grinder. Please also monitor the hydraulic systems moving the rolls. Use only the recommended oil or fluid and change them when due to prevent unexpected breakdowns from automated movements.

• Part life

  CNC roll grinders have parts like belts, bearings, and motors that wear out over time. Create a spare parts inventory based on typical parts life and machines' daily use and workload. Please order spare parts ahead of time so they are ready for repairs or replacements before they get excessively worn and cause breakdowns.

Applications of CNC roll grinders

The wide-ranging applications of CNC roll grinders can be classified according to various industries that use rolls, such as the:

• Metals and alloys industry: CNC roll grinders are mainly used for the precise grinding of backup rolls and working rolls for hot and cold steel mills, aluminum mills, stainless steel mills, alloy roll mills, and copper rod mills.
• Paper industry: CNC roll grinders help to manufacture and maintain the various rolls used in the paper-making process, such as de-watering rolls, press rolls, and suction rolls. In the Paper Industry, exactly calibrated rolls are essential for smooth operation, flawless paper, and minimal delays and wastage. Therefore, a CNC roll grinder is invaluable.
• Fertilizer and other chemical industries: In the chemical processing industries, CNC roll grinders are used to make and maintain precisely calibrated rubber and nylon mixing mill rolls. Like the Paper Industry, finely tuned and accurate rolls are vital for chemical processing and product purity.
• Cement and other material processing industries: The cement industry often uses a variety of metal and alloy rolls to mill cement and other substances. Cement mills may also require rubber or nylon rolls to process or convey materials. A CNC roll grinder can help sharpen and restore these rolls to precise tolerances.
• Textile industry: The textile industry makes extensive use of rubber and nylon rolls to weave and process different types of fabrics, including artificial fibers. Rollers often suffer from general wear and tear and need correction and servicing, which is done by specialized CNC roll grinding machines.
• Plastics industry: The plastic industry makes use of an extensive array of rolls to process plastic into different products and forms. The wear and tear of these rolls are often not noted until the product is defective and precious raw material is wasted. A roll grinder machine can help identify problem areas on the roll and correct them before they create further issues in manufacturing processes.

While the industries mentioned above are the main areas where CNC grinding machines and rolls are employed, other sectors may also benefit from these invaluable pieces of equipment. These include food and beverage, rubber, fiberglass, and general engineering industries.

Investment in a CNC roll grinder is a wise investment as it can earn money by servicing the rollers in several industries and providing excellent service and correctional work to high-precision rollers whose misuse can result in costly raw material wastage. Therefore, the use of roll grinders is expected to grow exponentially in the coming years.

How to Choose a CNC Roll Grinder

• Production capacity:

  When selecting a CNC roll grinder machine, one must have the required production capacity. According to recent studies, the machine's capacity massively impacts production efficiency and output.

• Precision and accuracy:

  The precision and accuracy of the CNC roll grinder machine are also fundamental factors in the choosing process. These features directly determine the quality of the processed rolls. Choosing a machine with high precision and accuracy can ensure reliable operation and stable processing results.

• Ease of operation and automation:

  The ease of operation and automation constitute important considerations when selecting a CNC roll grinder machine. Some machines are outfitted with an automated control system that can realize automatic grinding and reduce manual interference.

• Machine size and weight:

  Another factor that must be dealt with when selecting a CNC roll grinder machine is the machine's size and weight, which may affect the transportability of the machine and freedom of use in the production facility.

• Cost-effectiveness:

  Finally, the cost performance of the CNC roll grinder should not be ignored. It refers to the correlation between what it offers and the price it charges. Businesses need to compare different brand models and features to make a rational decision that meets production needs and budget constraints.

Cnc roll grinder Q and A

Q: How does a CNC roll grinder work?

A: CNC roll grinders are controlled using computer numerical control (CNC) systems. A CNC machines are bound to a pre-defined program that guides the motions of the machine, allowing for precise and automated control of the grinding process. The power and direction of its spin and the pressure applied to the roll are primarily responsible for its working.

Q: Why are CNC grinders vital?

A: CNC roll grinders help maintain the quality and performance of rolls by ensuring accurate machining, which is essential for optimal control of the thickness and other parameters of the material being processed. They do so at a level of precision and consistency that is critical to the efficiency and productivity of the manufacturing operation.

Q: What are the parts of a CNC grinder?

A: A typical CNC grinder includes the following, which may look slightly different on various grinders: The base is the machine's trunk, connecting all parts and structures. The table is where the item to be ground is placed. It may move up and down according to requirements. The column supports the upper parts of the grinding machine and may include some integral assemblies. The wheel frame holds the grinding wheel, and the spindle drives the wheel's motion. Finally, the motor provides energy to the entire system.

Q: What types of CNC grinders are there?

A: Generally speaking, as defined by what they grind, there are CNC roll, sinker, staple, and brushless motor grinders. Other classifications based on structure include CNC flat grinders, CNC surface grinders, and CNC tool grinders.
