The ball screw mini CNC is a small-scale CNC milling machine. It has a ball screw, which is a type of screw mechanism used to convert rotational motion into linear motion. Here are two common types of screws and how they operate.

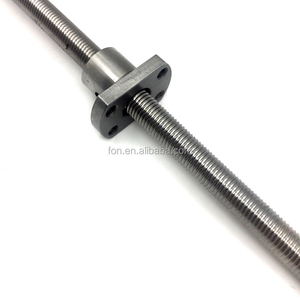

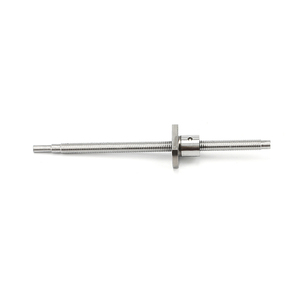

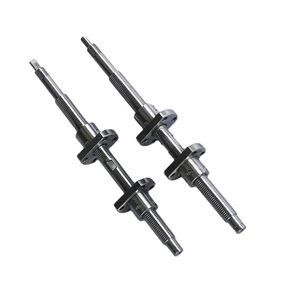

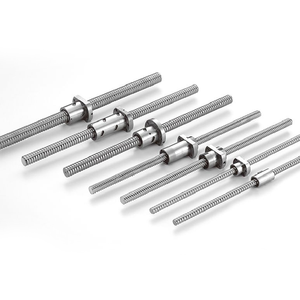

Miniature Ball Screw:
A ball screw consists of a screw shaft and a nut. The screw shaft has a circular groove, while the ball nut has matching spherical balls. The balls work as the driving force that moves the nut along the shaft. As the balls roll within the groove, they change rotary motion into linear motion and vice versa. Miniature ball screws are compact sized for smaller spaces. They preserve accuracy, high efficiency, and low friction in many applications.
Mini Ball Screw with Support:
It has a junction housing fixed to the screw shaft. The housing has two rotating elements called end caps. They support the balls as they reverse their direction of travel. Supported mini ball screws offer better rigidity than regular ones. They reduce bending and allow for longer travels and high load capacity.

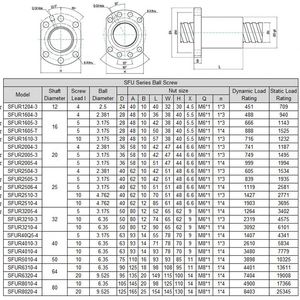

Specifications for ball screw mini CNCS vary according to intended applications and specific screw designs. The following are key ball screw specifications to focus on when sourcing their variants for mini CNC machines.
Diameter
This is the diameter of the screw shaft. It typically ranges from 16 to 40 millimeters for most ball screws. Choose a diameter that will give the machine adequate load-bearing capacity.
Lead
This is the distance from one thread to the next. The lead influences the linear speed and torque output of the CNC machine. A smaller lead improves torque and generates higher speed but lower angular positions. Conversely, a large lead produces high angular positions but lower torque.
Effective Length
It is the length of the threaded shaft that offers support to the nut. A longer effective length boosts the linear travel of CNC machines. However, it may impact precision and rigidity and make the assembly longer.
Load Capacity
Choose the ball screw that can bear the required load weight. The load capacity depends on the screw's diameter, the raceway geometry, the friction characteristics, and the number of balls.
Accuracy
Ball screws come in different accuracy grades. Select a ball screw with high accuracy if the CNC application requires tight tolerance and precision. Generally, ball screws with leading accuracy achieve positioning with minimal backlash.
Ball screw types for CNC have simple structures, making them easy to care for and maintain. Here are vital tips for taking care of the screws:
Lubrication
CZNC ball screws work perfectly well with lubrication oil or grease. For optimum performance, regularly grease or oil the ball screw to prevent premature wear and tear and reduce friction.
Dust Seals
Install dust seals or covers to protect the ball screw from debris, dust, and contaminants. Without protection, these external materials could damage the ball screw and impact its lifespan negatively.
Alignment
Regularly check the alignment of the ball screw with the surrounding components. Proper alignment maintains smooth rotation, even motion, and accurate positioning. Misalignment affects the screw's functionality and can cause a breakdown.
Weight Distribution
For heavily weighted CNC machines, distribute the weight evenly along the length of the ball screw. This will lower the risk of deformation, non-uniform wear, and stress concentration.

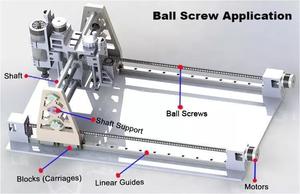

Machine tool industry
In the machine tool industry, the precision and reliability of a device are crucial when working with heavy-duty jobs. Mini ball screws are commonly integrated to drive the spindle, feed, and indexing systems of machine tools. Their high efficiency, low backlash, smooth, precise motion control, and high repeatability enable accurate positioning of workpieces and tools, as well as the performance of complex machining tasks. This improves product quality and increases productivity.
Aerospace industry
In the aerospace industry, mini CNC ball screws are used in a variety of applications, including satellite assembly, spacecraft positioning, and aircraft testing. These screws offer high reliability and precision, which are essential for the proper functioning of aerospace equipment. The use of mini CNC ball screws allows for accurate placement and movement of components, making it possible to carry out complex aerospace tasks with ease and efficiency.
Automotive industry
In the automotive industry, mini CNC ball screws are used in a wide range of applications, including vehicle inspection, assembly, and equipment maintenance. These screws help ensure the precise movement and placement of automotive components, which is critical for vehicle performance and safety. With mini CNC ball screws, automotive workers can achieve high-accuracy positioning and efficient operation in various production and testing processes.
Electronics industry
The electronics industry relies on mini CNC ball screws for high-precision machining and assembly of electronic components. Applications range from circuit board drilling and cutting to component placement and alignment. The accuracy and repeatability of motion provided by these screws are essential for the manufacturing and assembly of electronic products to meet the tight tolerances required.
Medical devices
Mini CNC ball screws are commonly used in the medical device industry for devices such as diagnostic equipment, surgical instruments, and therapeutic devices. These screws provide the high-precision motion control and positioning necessary for the accurate operation and measurement of medical devices. With the reliability of mini CNC ball screws, healthcare professionals can trust the functionality and precision of medical equipment.
When choosing a ball screw CNC, it is important to consider the following:
Q1: How to choose the right ball screw for CNC machine?
A1: When looking to choose the right ball screw, there are some things to consider to ensure it fits the required application perfectly. Consider the load capacity. Choose a ball screw that has a sufficient load capacity to handle the weight of the load during operation. Pay attention to the longevity and maintenance schedule of the ball screw. This also includes the lubrication system and sealing arrangement. Decide on the accuracy requirement for the planned application and select a ball screw with the desired accuracy level. Consider the operating environment and ensure that the chosen ball screw can bear the effects of the environment. If the application involves high-speed operation, select a ball screw designed for high-speed use to prevent overheating and premature wear.
Q2: How to maintain ball screws?
A2: In order to prolong the lifespan of the ball screw, it is important to establish a regular maintenance routine. Regularly inspect the ball screw for any signs of wear or damage, and also make a periodic replacement of sealing elements to prevent contamination. Lubricate the ball screw using the correct lubricant and apply the right amount as specified by the manufacturer. Keep the operating environment clean to prevent dust and debris from affecting the ball screw's performance. Finally, ensure proper alignment and leveling of the ball screw to prevent undue friction and wear.
Q3: Can users upgrade their CNC machine with a new ball screw?
A3: Yes, it is possible to make an upgrade to the CNC machine with a new ball screw. Some commonly available upgrades are: higher load capacity ball screws, precision ball screws, longer lifespan ball screws, and even larger diameter ball screws. However, it is very important to do proper research and take some necessary precautions. Ensure that the new ball screw is compatible with the CNC machine model. Also, ensure that the screw fit, motor coupling, and alignment have been checked before operating the machine. Finally, consider the performance upgrade and ensure that the machine can handle it.
