Ansi standard bushing

Types of ANSI Standard Bushing

Bushings have different functions within mechanical systems and come in various materials, shapes, and sizes. Here are some common types of ANSI standard bushings with their corresponding uses:

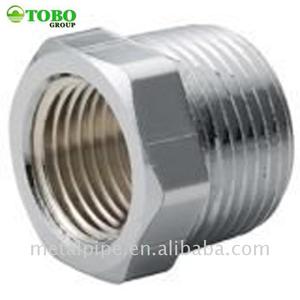

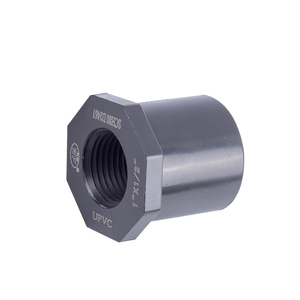

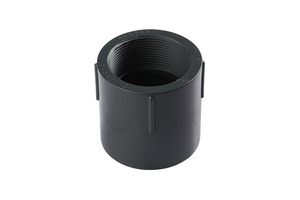

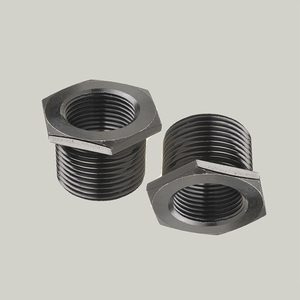

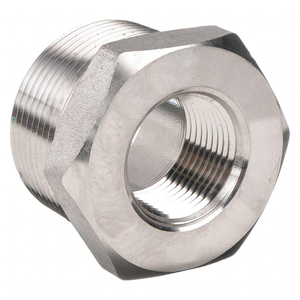

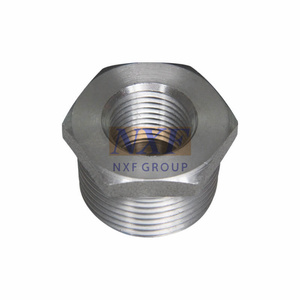

• Reducing Bushing

  A reducing bushing is designed to connect two different sizes of pipes. Therefore, it reduces the flow of liquids transferred through a pipe system. This characteristic of the reducing bushing makes it a popular component in plumbing and irrigation systems.

• Cylindrical Bushing

  The cylindrical bushing is one of the most common features in machines. It allows machines' rotating or moving parts to reduce wear and tear. This type of bushing is majorly used in areas of mechanical systems that subject components to high radial loads.

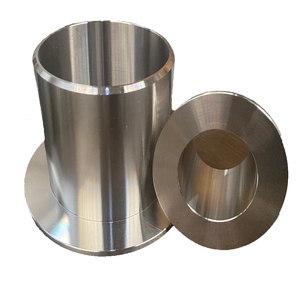

• Flanged Bushing

  A flanged bushing is used in applications where axial load support is crucial. The flange provides a stop during installation or use to prevent the bushing from being displaced. This feature makes it a common component in conveyors, clamps, and other machinery.

• Solid Bushing

  ANSI solid bushings are one-piece components usually made of bronze, metal, or plastic. They are used as wear plates or to reduce friction between two moving parts. The simple construction means they are widely used in many applications.

• Compensating Bushing

  A compensating bushing is flexible or made of elastomer materials. These materials dampen noise and vibrations while simultaneously absorbing shocks to protect sensitive components.

• Blind Bushing

  Blind bushings are used to close off holes in a component. This part is responsible for reducing wear in the part's interior. It is particularly useful in parts with blind holes, where the bushing is used to fill the hole's bottom.

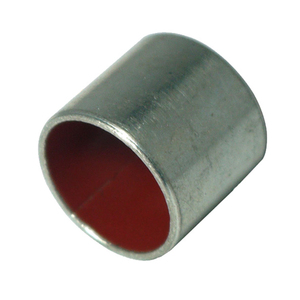

• Sleeve Bushing

  One of the widest sleeve bushing applications is in electric motors. Here, it supports the rotor by reducing friction between the rotor and stator. This type of bushing is used in machines, vehicles, and construction equipment.

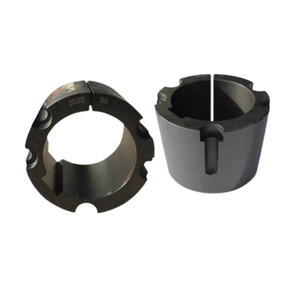

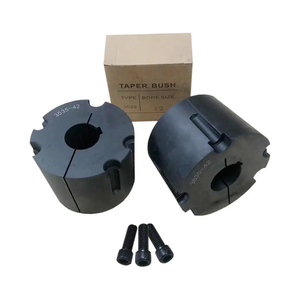

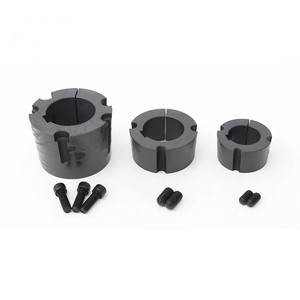

• Tapered Bushing

  This is a type of bushing that acts as a connector between two components that can adjust in either direction. It is mostly employed in belt drives, where it firmly secures pulleys or sprockets on shafts operating at differing diameters.

Function, Feature, and Design of ANSI Standard Bushing

Function

• Connection and Installation

  The primary function of a bushing is to connect two elements. These two elements can be pipes or machinery components. It permits a feasible interchange during installations using different sizes or materials while maintaining system integrity.

• Pressure and Temperature Regulation

  In plumbing, a bushing aids in providing pressure and temperature balance through a system. This is particularly true for ANSI stainless steel bushings, which are corrosion-resistant and hence suitable for high-pressure and temperature contexts.

• Stress Redistribution

  Mechanical bushings, such as the cylindrical or flanged bushing, redistribute stress. This feature reduces wear on components, hence extending their life spans.

• Vibration Dampening

  Some bushings, like the compensating bushing, are intended primarily for vibration dampening. They absorb shocks transmitted to sensitive components, reducing the noise level in the processed material.

Feature

• Material Variance

  Metal, plastic, rubber, and composite materials, among others, help optimize the performance of the bushing. Moreover, each material has its benefits. For example, a rubber bushing is preferable for dampening vibration due to its flexibility. At the same time, a brass bushing is utilized in applications that require high wear resistance.

• Dimensional Accuracy

  For each bushing to be an ANSI standard bushing, it must be dimensionally accurate per the ANSI specifications. This feature ensures a proper fit within mechanical systems or seamless pairing between pipes and systems.

• Corrosion Resistance

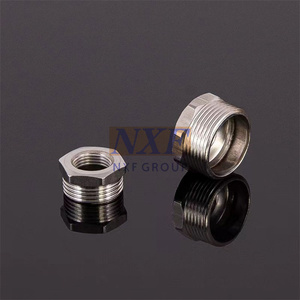

  Some bushings, usually the ANSI stainless steel bushing, are specifically designed for use in environments where they would be exposed to moisture or chemicals. Corrosion resistance guarantees long-lasting performance in plumbing and industrial applications.

• Load Bearing Capacity

  Every bushing type has a specific load-bearing capability. For example, tapered bushings are designed to withstand heavy loads and high torque. On the other hand, compensating bushings are meant for light-load applications requiring high elasticity.

• Temperature Tolerance

  Bushings are generally resistant to varying temperatures. Nonetheless, some like high-temperature tolerant ANSI bushings withstand extreme heat and mechanical wear. These are usually employed in heavy-duty industry applications.

Design

• Geometrical Aspects

  Bushing shapes vary greatly, with each having its function. For example, a tapered bushing tapers at one end for easy adjustment during installation. On the other hand, a flanged bushing features an integrated flange for axial load support holding up other machine elements.

• Surface Treatment

  Surface treatment in fashion, such as lubrication or coating, enhances the performance of ANSI bushings. For example, lubrication minimizes friction between moving parts while prolonging the bushing and the entire part's lifespan.

• Sizing

  Bushings are offered in different standard sizes. These standard sizes are defined by various ANSI specifications. Selecting the right size for a given application is critical. The selection ensures practicality and effectiveness in operation.

• Wear Indicators

  Apart from the standard features, certain bushing designs include wear indicators. These indicators help determine when a bushing needs replacement. They are particularly useful in maintenance-heavy industries.

Commercial Value of ANSI Standard Bushing

Cost-Effectiveness

By prolonging the lifespan of components, bushings reduce the frequency of part replacements. Hence, this leads to decreased overall maintenance costs. Moreover, the installation of ANSI bushings minimizes downtime, enabling organizations to operate more efficiently.

Improved Product Quality

Using high-quality ANSI standard bushings ensures products are more reliable. This reliability means mechanical systems operate smoothly with reduced friction and wear. For industries, this translates into enhanced product quality, resulting in greater customer satisfaction and brand loyalty.

Industrial Versatility

Accordingly, ANIS bushings are used in pipe and machinery systems in various industries. As such, they adapt to many materials and sizes, making them suitable for various operational requirements. This versatility reduces the need for system customization, saving costs and time.

Increased Operational Safety

High-quality ANSI standard bushings enhance system stability and reduce malfunctioning probability. This reliability translates into safer working environments with reduced risks of accidents or equipment failures. Consequently, this leads to improved operational safety in industrial settings.

Supports Sustainability

Increased lifespan of parts and reduced energy consumption in the systems mean that ANSI bushings support sustainability. Additionally, they reduce the frequency of replacements, leading to lesser waste generation. This feature makes them an environmentally friendly solution for industries looking to minimize their ecological impacts.

Enhanced Mechanical Efficiency

ANSI Standard bushings, such as the ANSI stainless steel bushing, provide high friction resistance. This property leads to lower energy losses in mechanical systems. Therefore, energy efficiency translates into lower energy costs for industries and businesses while reducing their carbon footprint.

How To Choose ANSI Standard Bushing

• Identify The Application

  Knowing the application helps decide whether a solid bushing, compensating bushing, or another type of bushing needs to be applied. One also has to consider the operating conditions in this context. Aspects such as load capacity, temperature, and pressure will guide the selection process.

• Material Selection

  Each bushing material has its advantages over the other. Metal bushings are the most abrasion-resistant and are therefore usable in heavy-duty applications. On the other hand, plastic bushings exhibit lower abrasion resistance but have better corrosion resistance. That makes them the better choice in chemical or maritime industries.

• Load and Pressure Ratings

  Load and pressure ratings define the capacity of the bushing to withstand the forces exerted on it during an operation. Ensure the chosen bushing has appropriate load and pressure ratings for a given application. Any bushing selected must meet or exceed the application's mechanical or hydraulic system requirements.

• Size and Compatibility

  The bushing size must conform to ANSI specifications to ensure a proper fit within the associated system. It should also be compatible with the materials of the neighboring components. Take, for instance, a tapered bushing. It must be compatible with the shaft and hub materials, which it will contact.

• Installation and Maintenance

  Some bushings are easier to install than others. For example, the compensating bushing offers higher flexibility upon installation. Furthermore, others are designed for low or no maintenance. Knowing this factor can help select a bushing that would be easy to install and low-maintaining in the long run.

• Friction and Wear Characteristics

  This is especially true for electrical motors and machines where efficient movement is required. A bushing's friction coefficient will impact the bushing's performance in the abovementioned application. Low-friction bushings are the most efficient energy-wise. In addition, they produce less heat, ultimately minimizing wear on themselves and the related components.

Q&A

Q1. What are ANIS stainless steel bushings most appropriate uses?

As an anti-corrosive product, an ANSI stainless steel bushing is suitable for chemical processing, marine, and other outdoor applications exposed to moisture. In these conditions, corrosion resistance makes them ideal, although they are more expensive than their carbon steel or brass counterparts.

Q2. What should one consider when selecting a bushing material?

Consider the operating conditions, such as load, speed, and temperature, while selecting the bushing material. You will need to decide between a compensating or a solid bushing depending on the conditions. Furthermore, consider the compatibility of the material with the surrounding components to avoid chemical reactions that would lead to further deterioration.

Q3. What is the average life expectancy of a bushing?

This depends on many factors. These factors include the application in which the bushing is used, the load it bears, and the environment in which it operates. Wear and tear, for example, in a mechanical system under heavy load, will shorten the bushing life more than in a low load or static environment.

Q4. Will replacing a worn-out bushing have a positive impact on performance?

Yes, a worn-out bushing has a negative impact on the system's performance. This negative impact manifests as increased friction, misalignment, and possibly even damage to other components. Replacing a worn-out bushing restores mechanical efficiency and reduces further wear to adjacent parts.

Q5. What is the main function of a blind bushing in a mechanical system?

The blind bushing primarily fills and protects blind holes from wear, thereby reducing friction between moving parts. It also prevents contaminants from entering the hole and provides a smoother surface for associated components. This action enhances the overall bushing's and component's durability and performance.
