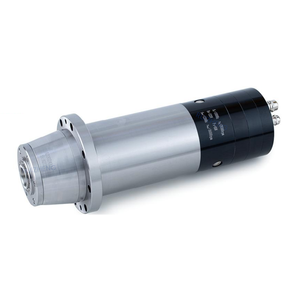

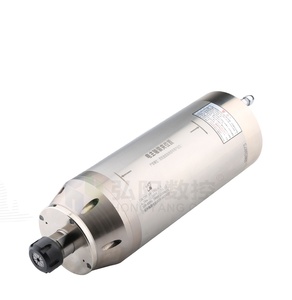

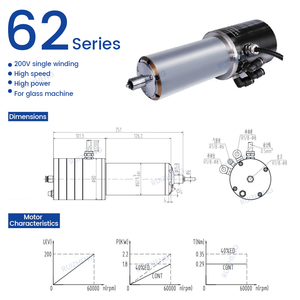

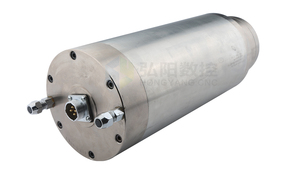

A 60000 rpm spindle motor 3kw is a high-speed tool often applied in CNC machines for different processes like milling, cutting, engraving, and drilling. Aimed at handling small tools and providing a torque range with immense power and accuracy, the spindle types below are common:
AC spindle motors ensure power and precision with little maintenance. They effectively convert AC power into mechanical energy without commutators for immense longevity and are usually available with a diversity of speed ranges. Due to their reliability, they are often used in areas that require continuous operation, like mass production.
DC spindles, known for their controllable speed and consistent torque, suit precise operations like engraving. They are also easier to manage and allow speed variation through simple electronic methods. Because of this affordability and compact design, they are mostly found in small workshops and home-based CNC machines.
The main parts of electric ring spindle motors are rotor ring and stator windings, where the rotor ring uses an embedded permanent magnet to generate a magnetic field. Powering the stator winding makes the rotor turn, creating the magnetic field that drives the rotor and induces the spindle motor rotation. Basic applications include Mid-Range Machining and Glass Machining.
High-frequency spindles employ a high-frequency AC to reduce the frame size while increasing speeds. They offer torque at different speed ranges and quieter operations. Parts of these spindles that work with smaller tools and industrial balances rely on these machines to maintain accuracy.
Router spindles are commonly used in woodworking CNC machines. They are based on conventional router design principles and are responsible for rotating cutting bits. Router spindles can be powered by either brushless DC motors or AC induction motors and may have variable speed drives for different speed ranges. These spindles are popular among carpenters and manufacturers who need precision in their woodworking tasks.
A 60000 rpm motor mostly applies in industries that require precise machining due to its high-speed operation. Below are a few industrial applications:
A CNC machine employs a spindle motor to rotate a cutting tool and workpiece to be machined. The high-speed spindle offers smooth cuts, usually required while working on complex parts from hard materials like titanium and steel. The CNC machine's precise control over the spindle speed and direction ensures the machine performs adequately during the machining operation.
Commonly used in engraving and marking machines to detail materials like metal, wood, acrylic, and glass. High-speed rotation of the spindle allows for fine engraving, which results in detailed designs and patterns. Soft materials like wood also use lower speeds for cutting, routing, or engraving.
In the automotive and aerospace industries, working on critical components like sensors, casings, and brackets requires unparalleled precision. High-speed spindles facilitate the machining of these intricate parts from strong materials while ensuring dimensional accuracy and surface quality. A spindle motor's efficiency impacts overall production rates and affects the quality and performance of the final assemblies in these sectors.
Spindle motors apply machining tools in producing medical instruments like surgical drills, implants, and diagnostic equipment. Usually, these tools work with very tight tolerances and smooth finishes for sensitive procedures and reliable instruments. The high-speed spindles provide the precision and quality required to adhere to strict safety standards in this sensitive industry.
High-speed spindles apply Aeronautical engineering for detailed Machining components for planes and spacecraft. Working with lightweight and extremely durable materials requires accuracy. Spindle motors play a vital role in providing the required speed and control.
In injection molding and die-casting industries, spindles facilitate the machining of molds and dies. The quality of the mold directly affects the quality of mass-produced items, and thus, using a 60000 rpm spindle motor results in smooth and detailed mold surfaces. Additionally, common materials like steel and aluminum can be cut with high precision through these spindles.
High Speed
With a maximum of 60000 rpms, the spindle motor is ideal for applications demanding precision and finishing.
Water Cooling
The water-cooling system installed into the spindle motor maintains temperatures during long periods of operation. This reduces overheating, improves longevity, and assures steady performance, particularly in demanding environments.

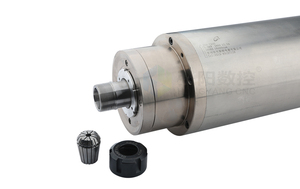

ER11 Collet
The ER11 collet guarantees tool and workpiece gripping within tight tolerances. It has varying sizes of standard collets to ensure an expanded or contracted tool holding absolute smoothness and minimal runout.
Variable Speed
The variable-speed function of the spindle motor gives the operator control over the speed range to suit specific machining needs. This flexibility aids in adapting materials and tasks for efficiency and effectiveness.
High Precision Bearings
High-precision bearings are incorporated into the spindle motor to ensure smooth rotation and minimal friction. This increases tool wear and guarantees accuracy, even at max speeds, making it ideal for fine machining.
Selecting the Right Mounting Location
Mount the spindle motor in a secure, vibration-free area of the CNC machine. Ensure easy access for tool changes and maintenance. The location should have sufficient space around the spindle for cooling water lines, power cables, and control wiring connections.
Mounting the Spindle
The spindle motor is usually integrated and mounted into the CNC machine's spindle bracket or housing. Use the provided mounting bolts and the spindle aligned with the machine's spindle taper. Check that the motor is secure and properly positioned.
Connecting the Cooling System
Connect the water-in and water-out lines for the cooling system to the spindle. Use flexible water lines to prevent strain on the spindle connections. Ensure all seals are tight to prevent leaks; water should flow in from the spindle's cooling inlet and out from the cooling outlet.
Wiring the Motor
Follow the spindle motor manual for wiring instructions. Connect the motor wires to the appropriate terminals based on the motor's wiring diagram. Properly identified colour-coded wires should be power cables connected to the machine controller.

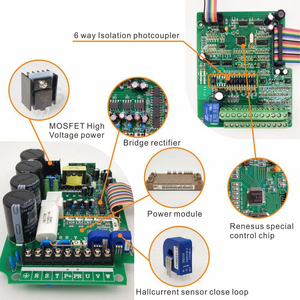

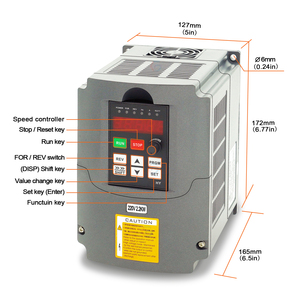

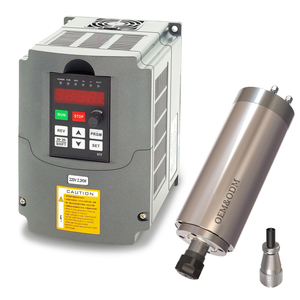

Connecting the VFD
The VFD (Variable Frequency Drive) controls the spindle motor speed and operation. Connect the VFD to the spindle motor and power supply per the VFD manual. Be sure the VFD is configured according to the motor's specifications.
Final checks
Before operating, check all connections: cooling lines, power, and control. Ensure appropriate cooling water flow. For testing, run the spindle at low speed using the VFD, then check the direction of rotation, sounds, and vibrations.
Daily Maintenance
Checking coolant levels ensures the spindle operates at ideal temperatures without risk of overheating. To prevent hardware damage, the coolant should be replaced or topped off. Spindle rotation check to ensure all bearings are functioning well without producing any unwanted sounds. Listen for any unusual noise or vibration, warning signs of required maintenance or internal bearing damage. Lastly, inspect the exterior of the motor for signs of wear, debris accumulation, or possible coolant leakage. Clean the motor area helps with cooling and prevents overheating when the environment becomes too dusty.
Weekly Maintenance
Documented recording of spindle hours is essential in determining when to perform further detailed maintenance. As spindle parts wear out, having a record slows down wear and tear on components that help with integrity. Close grease application to all bearings, especially those used frequently, is important in ensuring smooth movement. Use manufacturer's prescribed lubricant only in minimal amounts, preventing dust/grime from accumulating and causing dysfunction. Lastly, check all cables and hoses connected to the spindle for wear, cracks, or loose connections. They might be a potential hazard, so ensure they are tightly secured.
Monthly Maintenance
Detailed inspection looking for worn-out parts, like brushes and bearings, that might need a possible change because they have reached maximum age. Take the shaft apart to professionally clean it without using chemicals that might degrade the quality of the parts. Also, inspect the collet for signs of wear, cracks, or damage; the collet should be replaced if it can't grip tools steadily. Lastly, ensure all electrical connections are tight, check for corrosion, and clean where necessary.
Repairs
Some common spindle motor repairs include bearing replacement. Bearings tend to wear out over time and need replacement for proper spindle functioning. Frequent maintenance minimizes bearing wear and tear, prolonging spindle motor life. Honing the spindle shaft fixes minor nicks and scratches caused by wear and tear over time. Internal parts like rotor and stator might develop faults from electrical surges; professionals should handle these intricate repairs. Sometimes, components age naturally, and the only option is to replace them. Regular inspections can help identify the parts that need replacing before they affect operations.
A 60000 rpm spindle motor 3kw's quality determines an operation's speed, accuracy, and efficiency. High-quality spindles use premium materials and manufacturing techniques to minimize runout, boost torque, and ensure thermal stability. Usually, these spindles undergo rigorous testing for durability and precision before being deemed fit for industrial applications.
Precision Engineering
Usually, high-quality spindle motors are engineered with great attention using advanced CNC machines. These motors incorporate quality control measures to maintain the tight tolerances needed for precision machining.
Low Runout
Runout indicates how much a rotating object deviates from a perfect circle. The lower the runout, the more stable the operation. This is important because any deviation will affect the machining process, resulting in inaccurate cuts, excess wear on tools, and a rough surface finish. Therefore, high-quality spindle motors have runouts measured in thousandths of an inch.
Thermal Stability
Heat is generated as the spindle motor runs at high speeds. Quality spindles are manufactured from materials that withstand heat. Often, they incorporate efficient cooling systems that limit overheating to maintain precision and protect internal components.
Durability
Usually, quality spindle motors are designed for long-term use. The materials used are hard-wearing, friction-resisting bearings, rotors, and housings which are carefully selected. Also, they are tested to ascertain their reliability under continuous operation in demanding environments like large factories.
Consistent Performance
Quality spindle motors ensure reliability within industrial machines where consistency matters. These motors provide the same level of tolerance from one operation to another, reducing the chances of errors.
Steel Alloys
Steel alloys are commonly used in making spindle shafts because they have both tensile strength and ductility. These shafts resist bending or breaking when exposed to high torque and speeds. They are also heat-treated to enhance durability and resistance to wear, ensuring prolonged functioning in these environments.
Aluminum Alloys
Manufacturers make the housing of spindle motors from lightweight aluminum alloys. These materials dissipate heat easily and reduce the overall weight of the spindle, allowing easy maneuverability without compromising strength.
Ceramic Bearings
Ceramic bearings are increasingly used to fabricate spindles with high-speed capabilities because they are stronger, lighter, and heat-resisting more than steel counterparts. Usually, they reduce friction for smoother operation and longer life.
Brass and Stainless Steel Collets
Collets, which hold the tool or workpiece, are mostly made of brass or stainless steel. Brass is corrosion-resistance, while stainless steel provides exceptional strength and rigidity.
Graphite and Bronze Bushings
Usually, bronze bushings provide low-friction surfaces for the spindle to rotate on. Their strength is ideal for supporting heavy loads within machines. Alternatively, when coupled with a bronze surface, a graphite bushing provides minimal lubrication and long wear-life, ideal for low-maintenance applications.
Q1: Which industries need a 60000 rpm spindle motor 3kw most often?
Usually, spindle motors apply in CNC industries like engraving, aerospace, automotive, and medical device manufacturing. They work with precision machining of intricate components and materials, making them integral to high-tolerance and surface-finish needs.
Q2: What's the spindle motor's cooling system significance?
The motor generates heat during prolonged high speeds; that is why a cooling system keeps operating temperatures within safe limits. Failure to cool down the machine can cause overheating; overheating damages internal parts, reduces accuracy, and affects the motor's overall longevity.
Q3: What makes these spindle motors ideal for high-speed machining?
High-speed operation, mechanical handiness, versatility, and the ability to handle intricate CNC procedures define the 60000 rpm spindle motors. Usually, they can efficiently complete fine finishes, quick cuts, and precision work on multiple materials.
Q4: How does collet selection affect spindle performance?
The selected collet directly affects the spindle's performance in terms of tool-holding precision. Standardly, an ER11 collet ensures tight and concentric tool-holding. This reduces runout for smoother operations, better finishes, and more accurate machining processes.
Q5: Which materials commonly make high-speed bearings?
Hybrid ceramic ball bearings are often made of steel inner and outer rings with ceramic balls. These bearings have minimal friction, great heat resistance, and superior strength. They fit perfectly in high-speed applications like a 60000 spindle motor, demanding accuracy and durability.
